Product Description

Automatic 99.99% sterilization
and wash in 10 seconds only with water

“Klean Genie”

브로슈어 다운로드

Necessity of Clean Genie

  1. Global CRISIS: U se of disposable products

    • - Global warming is threatening the world at a devastating scale with large forest fires, drought, heavy rain, and flooding.
    • - One of the main culprits of global warming is the abuse use of disposable products such as plastic and pper coffee cups, which also threatens our table with ocean pollution.
    • - Nevertheless, consumption of disposable cup is growing at an exponential

  2. Efforts to reduce disposable cups :usage regulations

    • - Expanded use of reusable cups and Latte Levy
      As we become increasingly aware of the environmental impact, many have opted to using reusable cups Despite the hype and hundreds of chic brands offering a wide array of options, they only occupy five percent of the to go coffee market Some countries and large corporations are taking a stance and moving to set up legislation on imposing a charge per single use disposable cups in a bid to reduce consumption and its environmental impact

  3. ommon problems to address in order to expand the use of reusable cups.

    • - Hard to sterilize deep inside of tumblers
    • - Easy contamination to molds and germs
    • - Difficult to disinfect after each use
    • - Skin exposure to detergent during wash
    • - Difficulty sterilizing of personal cup on the go or at office

  4. KLEANGENIE completely solves all provlems of using resable cups

Product features

  1. Environmental friendly 99.99% sterilization only with water within 10sec.

    • - Washing & sterilizing with only water without any additives or chemicals
    • - Increased stability of use by producing sterilized water in real time
    • - Returns to normal water after a set period of time, causing no secondary water pollution

  2. Quick & easy use Suitable for personal cups such as tumblers or mugs

    • - It works when you press the cup upside down and can be used repeatedly
    • - Quick and easy wash and sterilization regardless of cup size and type
    • - It`s an open type that anyone can use easily within 10 seconds

  3. Perfect sterilization & wash A powerful stream of water, sterilize not only depth but also areas where your lips touch

    • - Minimize blind spots with multi-directional injection exposure structure
    • - Three times the cleaning power by air-water mixed pulse wave technology
    • - Wash and sterilize the outer part where the lips touch and inside of the cup at a time

  4. Convenience of installation Easy installation with improved drainage system

    • - Drainable with 6.3mm diameter thin tube (functionable and aesthetically pleasing)
    • - Extend the drain distance by more than 20m by using a drain pump
    • - No restrictions(offices and hallways) on install location due to drainage or supply of water

greenhouse gas reduction effect

KleanGenie helps companies run ESG.

  • KleanGenie displays the number of uses.

  • The indicated number of uses may be
    converted into a reduction in disposable
    cups or a reduction in greenhouse gases.

  • If you use it once a day for a year,
    the effect of planting two pine trees
    if once a year.

Technology and principle

  1. K-GENIE technologies

    production of sterilized water using DSA electrodes

    • - real-time electrolysis electrode use of high-efficiency no- channel and no-separation membrane
    • - Durable & unseparated partition electrode modularization design

    Water and air pulse wave generation technology

    • - Generate 30 pulse waves per sec. by mixed inflow of water and air
    • - Increased cleaning and washing power by whirl water spray
  2. K-GENIE sterilization

    Production of highly sterilizing hypochlorous acid

    • - Through real-time water electrolysis, high concentration Hypochlorous acid production from chlorine ions containde in water
    • - Hypochlorous acid has about 80times more sterilizing power than Clorox, so it can sterilize bacteria within seconds.

    Sequential application of washing/sterilizing and rinsing

    • - Total 10seconds operating(sterilizing for 8 sec. and rinse for 2 sec.)
    • - Completely remove residues during the last rinsing phase for safe use
    • - After sterilization, the washing water is returned to the original water

effect of Klean genie

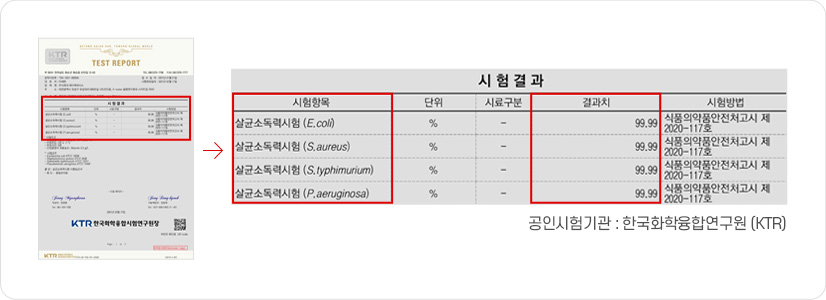

Sterilizing effect of Klean Genie

  • Klean Genie has a definite sterilizing effect.
  • Klean Genie is a product that has been confirmed to be 99.99% sterilizing effect by a sterilizing power test conducted by an authorized testing agency.

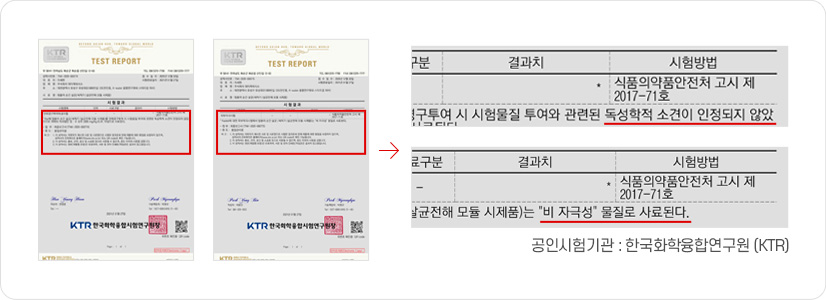

Safety of Klean Genie

  • Clinzini has been confirmed to be safe in the human body, including oral toxicity tests and skin irritation tests.(Application of Korean Ministry of Food and Drug Safety Notice No. 2017-71)

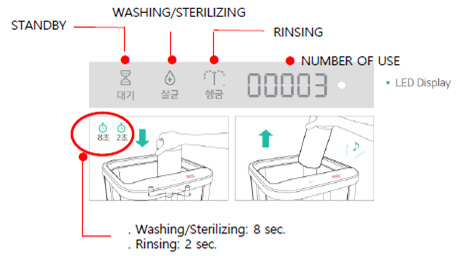

How to use

  • Clean and sterilize VERY EASILY and QUICKLY

    • - Hold t he cup upside down for 10 seconds
      and remove from the nozzle.

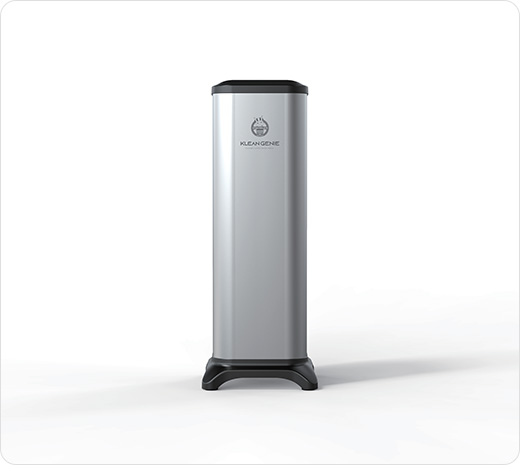

제품 규격

Brand name Klean Genie(K-Genie) chlorine concentration 1ppm~10ppm
Model name wgc-20v1-kr water consumption under 500ml/10s
component Product, User's Guide sterilized water production more than 1.2LPM
size(inch) 31.9h*12.8w*12.8d operating temperature 4~40˚C
Weight 9.5kg inflow pressure of tap water 2.0~3.0bar
Power DC24V 6.3A(151W) air inflow pressure 1.0~2.0bar
